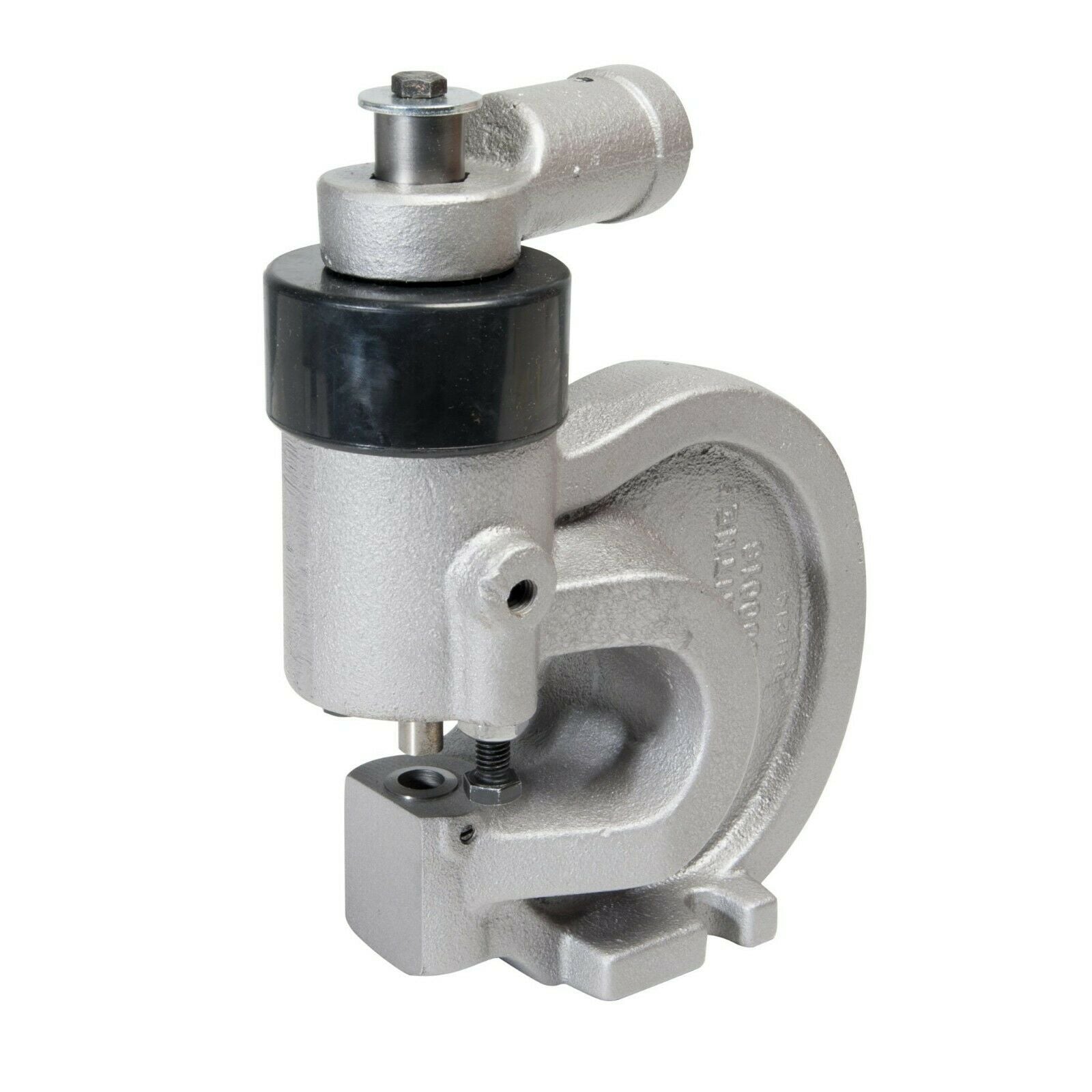

The No. 20 punch offers 20 tons of punching power to meet heavier job requirements, and greater versatility in punching flat sheets and angles. Includes one 1/2″ round punch and die set.
Roper Whitney heavy duty roller bearing operation bench punch c/w 1/2″ punch & die. Generates a huge 20 tons of punching capacity.
Model No. 119 ratchet handle available as an optional extra.
Model No. 20
- Maximum rated capacity: 20 tons
- Capacity thro mild steel: 1/2″ dia. thro 1/2″
- Max. hole size dia.: 13/16″
- Throat depth: 2.1/4″
- Standard p & d in kit: 1/2″
- Weight: 11.5 kg
- Ratchet handle available as an optional extra
- Special coupling nuts are required for p & d’s from 11/16″ up to 13/16″ dia.

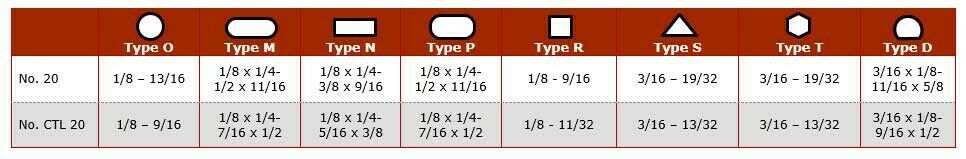

- Standard round punches and dies are available from stock from 1/8″ dia. to 13/16″ dia. in increments of 1/64″
