Nickel Plating Set Up. Solution, DC Transformer & Anodes, Instructions.

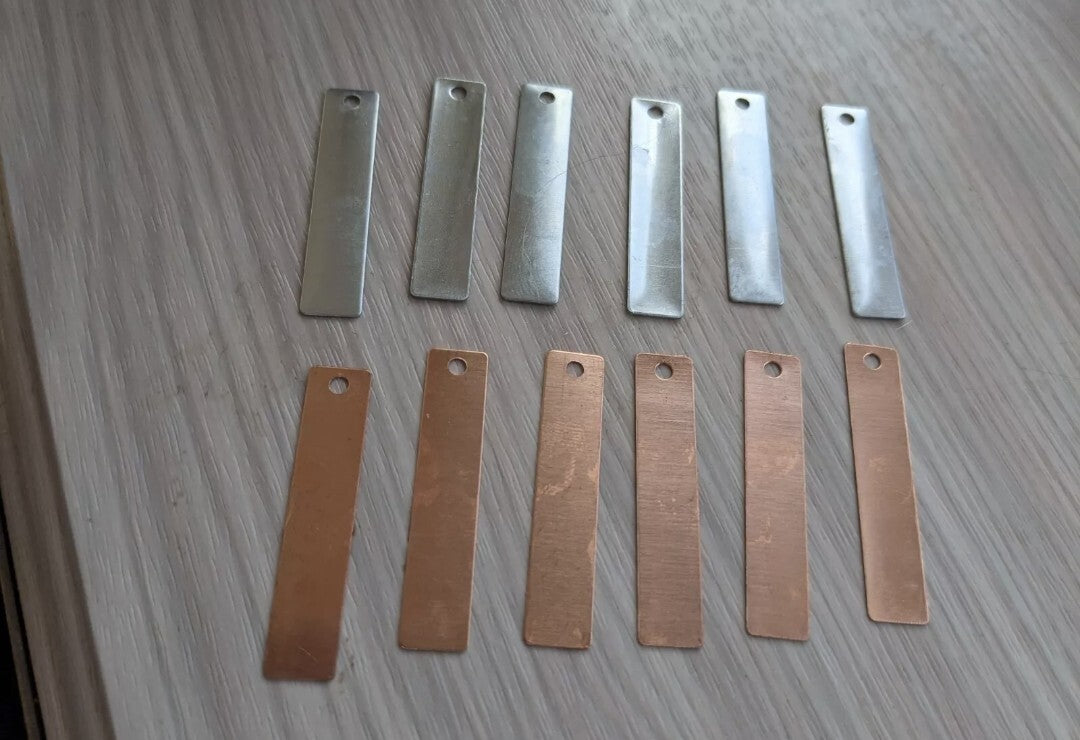

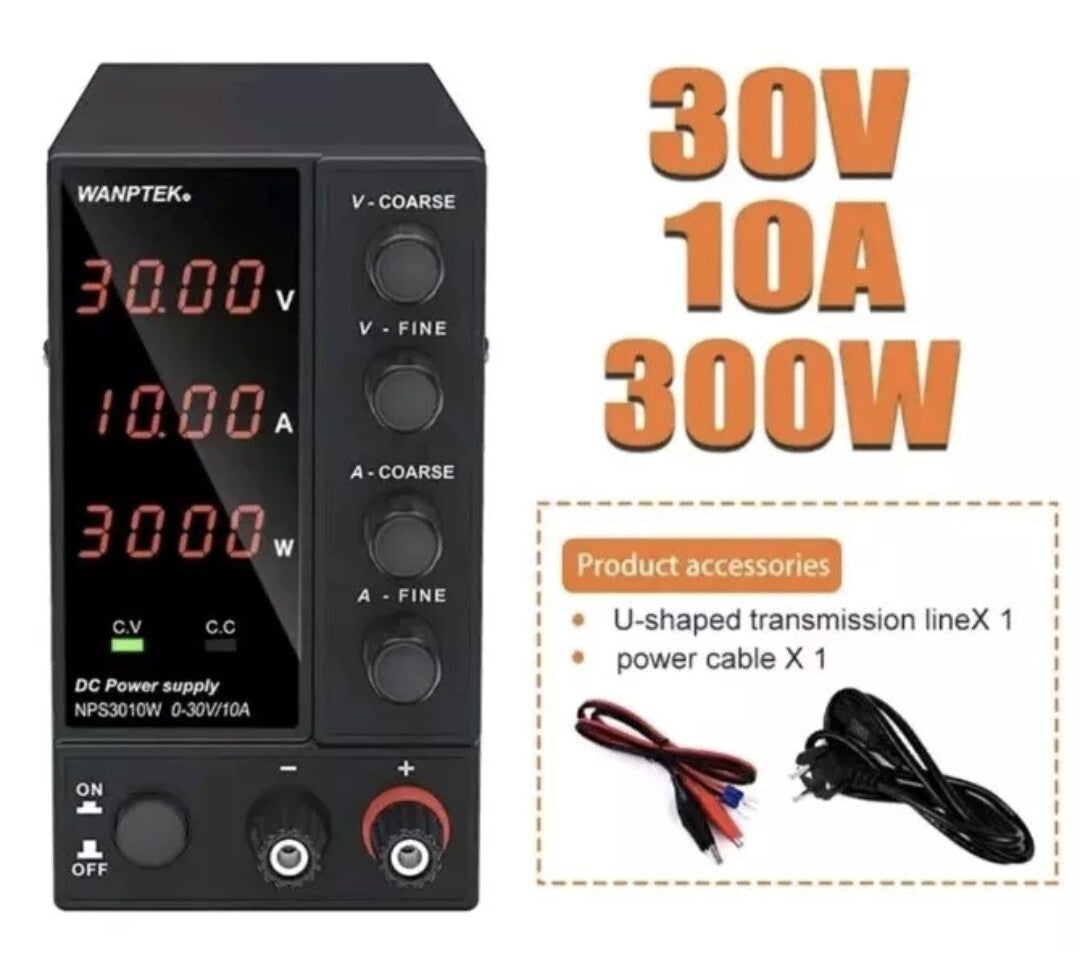

Full set up for Nickel plating. Includes solution (100ml), DC Transformer and anodes in copper and aluminium (copper for use with copper ideally) Instructions included

thoroughly. Remove rust completely and degrease the part, e.g. with isopropanol. Be sure to work with clean disposable gloves to avoid transferring skin grease to the workpiece.

A nickel anode is particularly recommended - this gives a very high range, as the nickel is permanently enriched.

Please pay attention to the following recommendations, depending on the electroplating method used.

Parameters (these may vary, please test):

• tank plating: 2-5V (approx 3V recommended at 10cm distance)

• brush plating: 6-12V (approx 8-9V recommended)

• current density: 0.3-1,2A/dm² (up to 3A/dm² with bath movement)

• working temperature: 15-60°C

• pH-value: approx 4 (can be corrected with e.g. 10% sulphuric acid)

• deposition rate: approx 0.3µm/min at 1A/dm² and 20°C

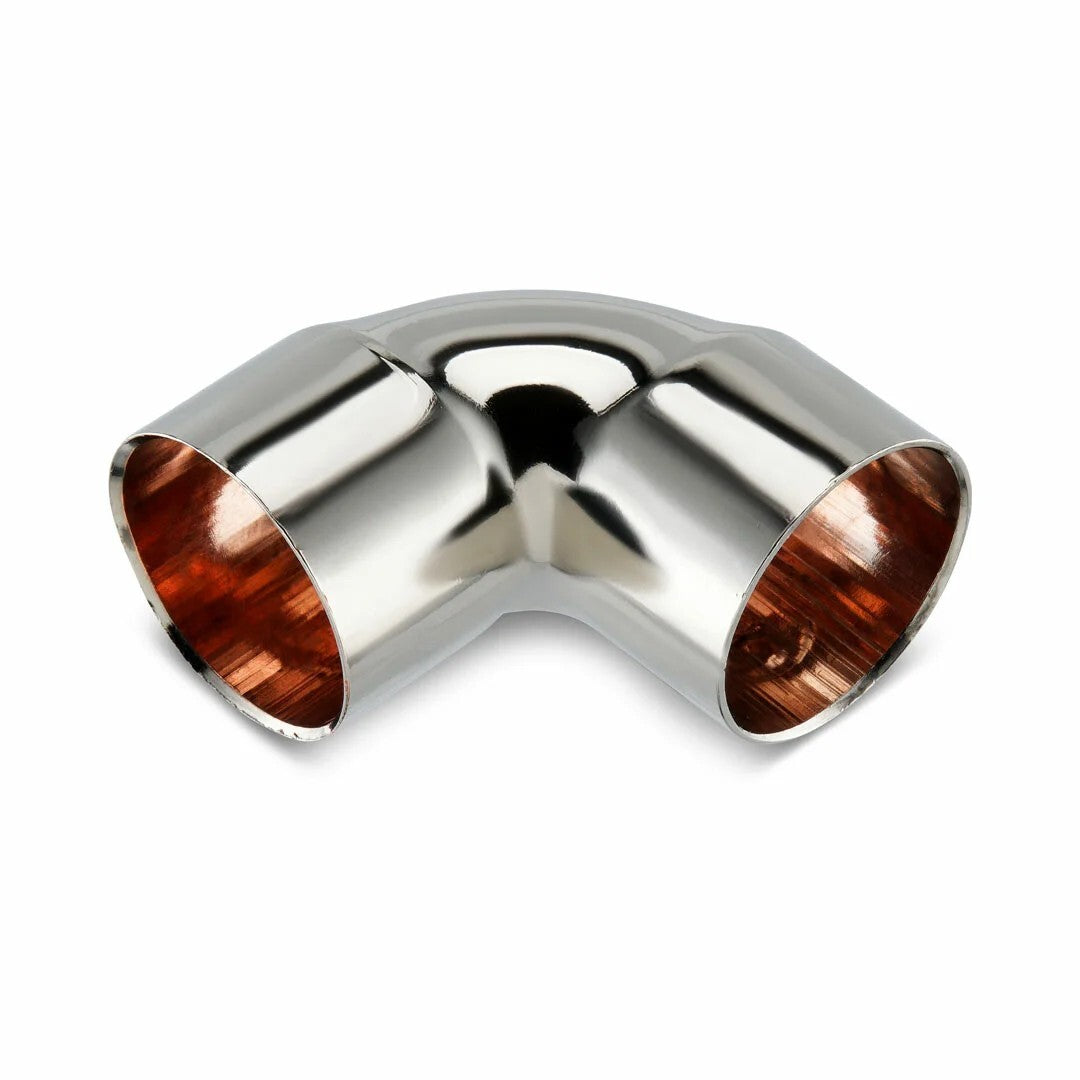

If the specified parameters are adhered to, a shiny and uniform nickel layer will form on the component.





Marking of the mixture:

Free-Nickel

(contains nickel sulfate, nickel dichloride, nickel bis(sulfamidate), nickel sulfamate, nickel di(acetate), diammonium nickel bis(sulfate))

Signal word: Warning



H317 May cause an allergic skin reaction.

H412 Harmful to aquatic life with long lasting effects.



P102 Keep out of reach of Children.

P103 Read carefully and follow all instructions.

P261 Avoid breathing dust/vapours/spray.

P280 Wear protective gloves and eye/face protection.

P302+P352 IF ON SKIN: Wash with plenty of water.

P333+P313 If skin irritation or rash occurs: Get medical advice/attention.

P501 Dispose of contents/container according to regional/national regulations. Do not discard with household waste.
